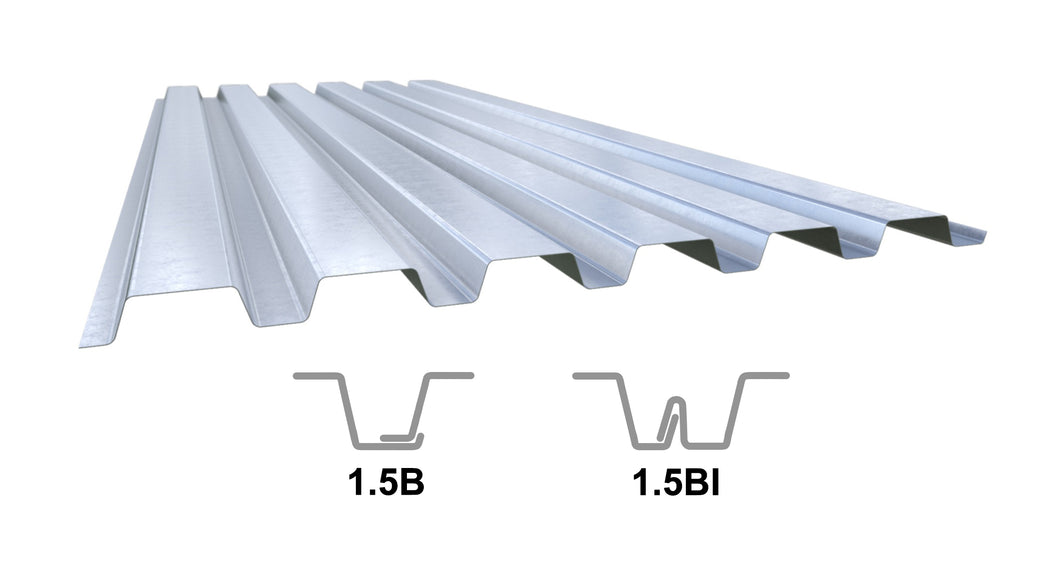

1.5B & 1.5BI • Roof Deck

Description:

  • Canam profile 1.5B (screwed side laps) and 1.5BI (button punch side laps)
  • Also known as wide rib deck
  • The most common deck profile in the industry
  • 38.1 mm (1 ½ in.) depth
  • 914.4 mm (36 in.) width (coverage)
  • 152.4 mm (6 in.) flute spacing
  • Available coatings:
    • Light zinc coat / Galvaneal, ASTM ZF075 (A25)
    • Galvanised, ASTM Z275 (G90)
  • Available thicknesses:
    • 0.76 mm (22 gauge)
    • 0.91 mm (20 gauge)
    • 1.22 mm (18 gauge)
    • 1.52 mm (16 gauge)
  • Manufactured in Canada:
    • Mississauga, Ontario
    • Calgary, Alberta

References

Engineering Tools

Pick up (Only open trailers are allowed.  No closed trailers are accepted)

Special orders are dispatched within 4 to 6 weeksFor special orders, please contact us: canamshopify@canam.com


1.5B & 1.5BI • Roof Deck

/ ft²

- 25%

On orders over

1500 ft²

140 m²

Side laps
Screwed (cladding)
Button punch
Please select the unit for length input

Enter length in millimeters

Total Area:

0.00

Total Weight:

0.00

kg

Total Price:

0.00

$

Shipping calculated at checkout
